Accelerator Pedal Linkage Kit, RHD 55-67. SCHBB012

SHOP > Splitscreen 50-67 > Gearbox/Hand + Foot Controls/Cables > Accelerator Linkage Upgrade Kits

Accelerator Pedal Linkage Kit, LHD 59-67. SCHBB014

  • Accelerator Pedal Linkage Kit, RHD 55-67. SCHBB012

  • SCHBB012
  • £85.00
    inc. VAT (where applicable)
Out of stock.

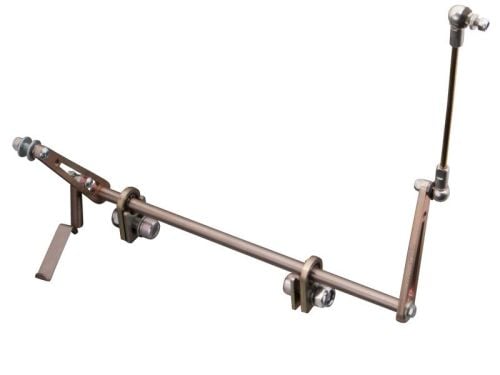

These kits are a great upgrade on your original pedal assembly, and very simple to install. This fits any late RHD 55-67 model.


Remove the old cross shaft, push rod from the pedal and disconnect the throttle cable. Then clean the two square lugs where the original cross shaft went through the two holders, the new kit fits over the two square lugs allowing two bearing carriers to hang just below the original holders. The kit has to be fitted as it comes assembled. Remove the mounting bolts and fit the square washer over the square lug then fit the square bearing holder over the same lug and bolt up, leave loose while you set the cross shaft position then tighten up and make sure the new assembly moves without rubbing or catching on any other components. Now connect the pedal then the accelerator cable. The bearings will give a far smoother feeling to your accelerator pedal. Also the end plates are 20mm taller than the standard setup so it allows full throttle to be achieved easier on twin carb`d hex bar setups. The kit can be altered if you require less cable travel.
